Tracked field mobility
Supplied obstacle capability: 380 mm obstacles; 48° stairs; 50° slopes.
Inspection & Special Robots / SFTR200

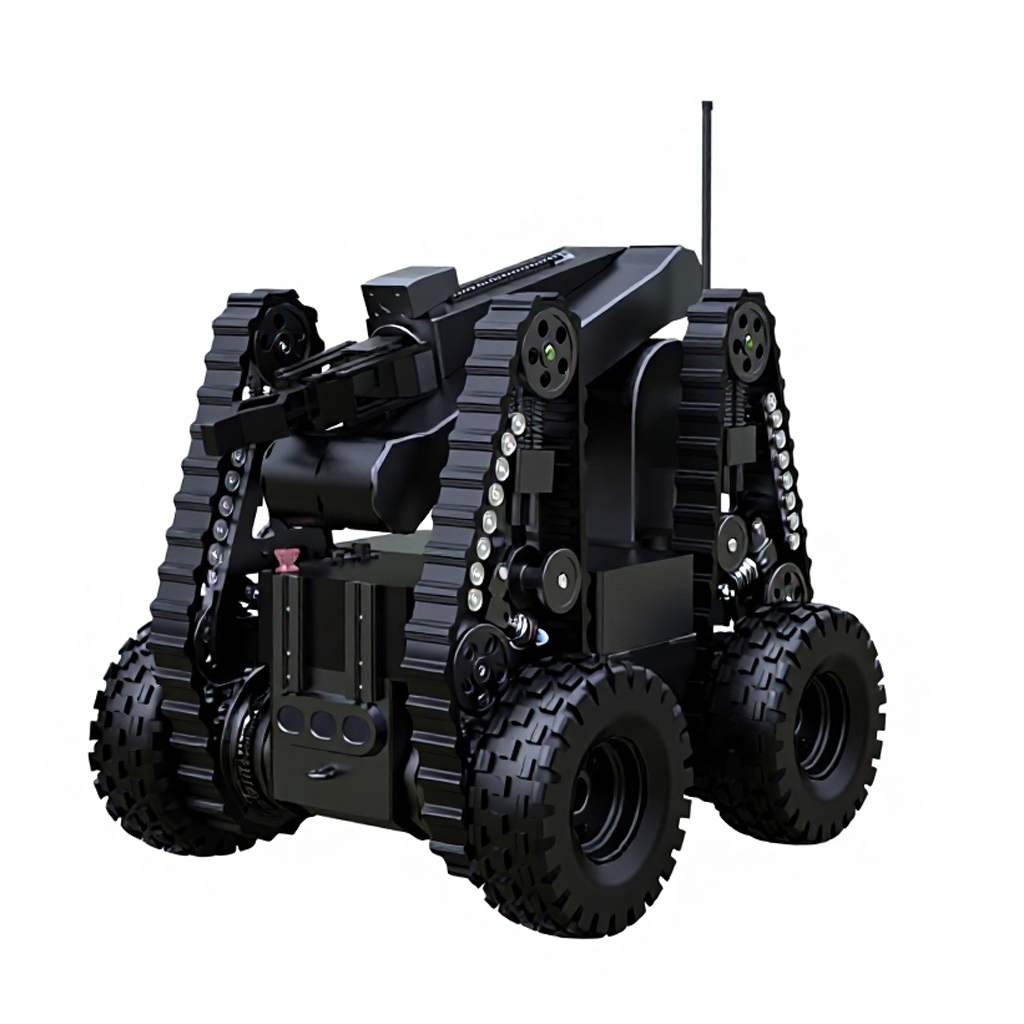

SFTR200 Tracked Robot with 7-DOF Manipulator
A tracked special-purpose robot with a 7-DOF manipulator, IP66 protection, and remote communications for demanding field operations.
- Dimensions(mm)
- 830×590×430
- Max. Speed (m/s)
- 1.8
- Max. Obstacle-Crossing Height
- 380 mm obstacles; 48° stairs; 50° slopes
- Working Time (h)
- 4
Product overview
Designed around verified requirements.
The SFTR200 combines a tracked mobility base, articulated manipulator, multiple cameras, and long-range remote communication for inspection and special-purpose work. The supplied configuration lists stair, slope, obstacle, reach, and arm-payload values. Confirm the mission payload, gripper, communication link, environmental limits, and safety requirements before deployment.
7-DOF manipulator
Published arm payload: 16 kg (fully retracted); 6 kg (fully extended).
Remote situational awareness
Published camera count: 7 with wired, fibre, or wireless communications.

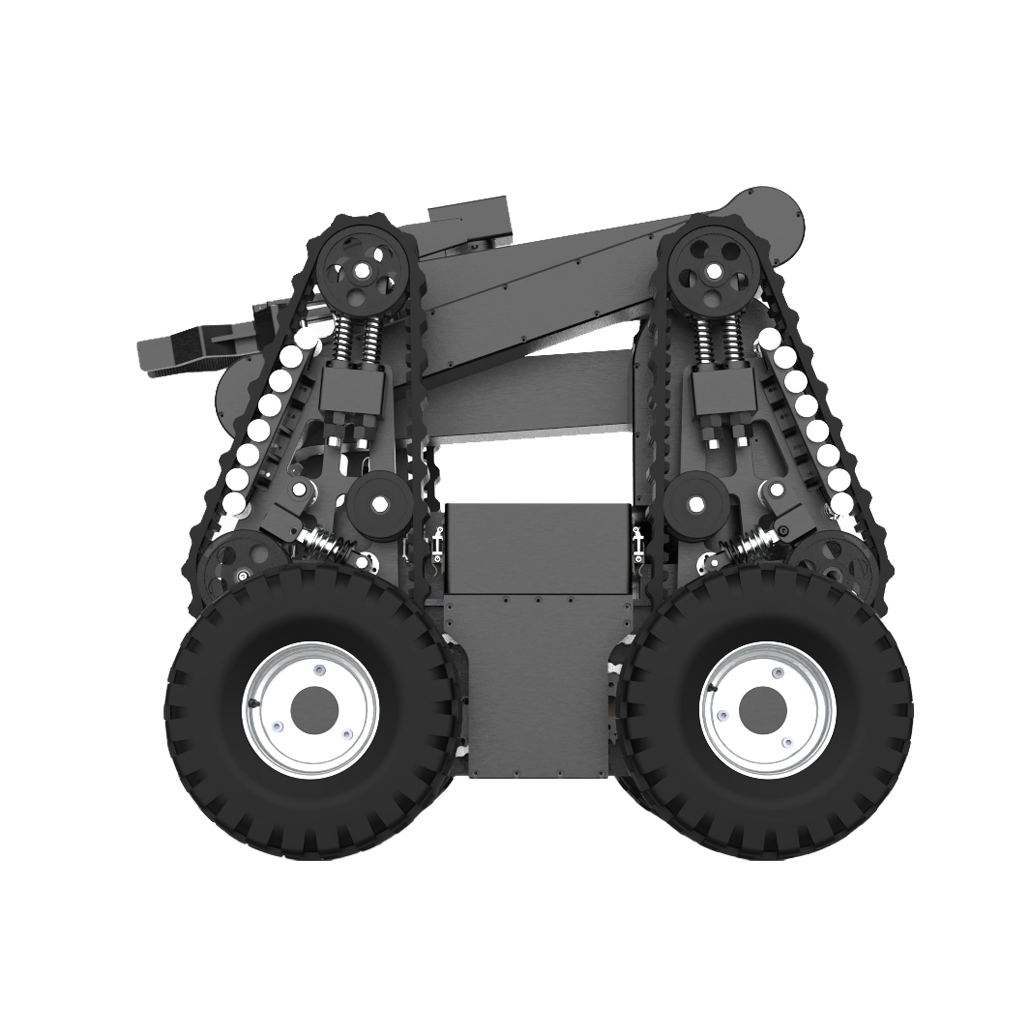

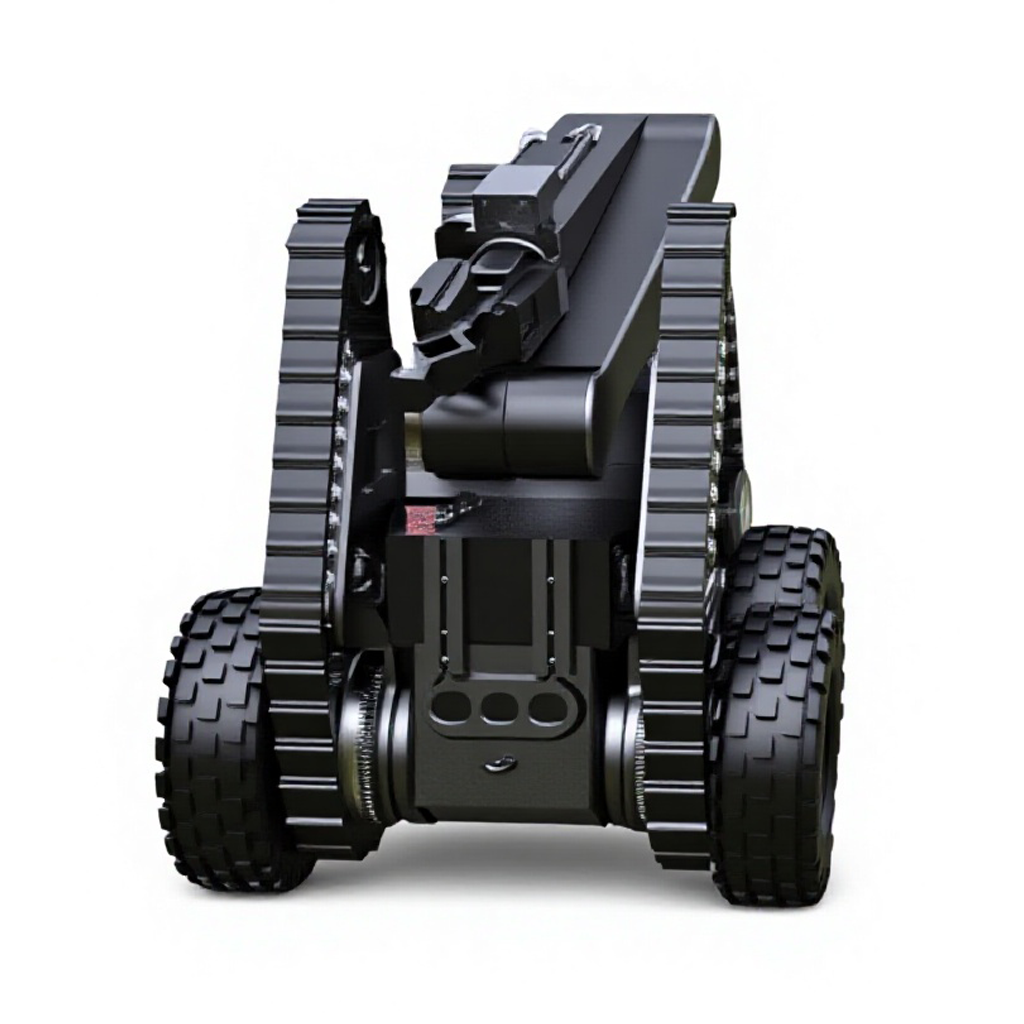

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Mobility and protection
- Dimensions(mm)
- 830×590×430
- Max. Speed (m/s)
- 1.8
- Max. Obstacle-Crossing Height
- 380 mm obstacles; 48° stairs; 50° slopes
- Working Time (h)
- 4
- Min. Ground Clearance (mm)
- 45
- Protection Rating
- IP66
- Total Weight (kg)
- 37
Manipulator
- Degrees of freedom of the robotic arm
- 7
- Wrist rotation angle
- -180° to +180°
- Arm payload
- 16 kg (fully retracted); 6 kg (fully extended)
- Vertical reach of main gripper(mm)
- 1750
- Horizontal reach of auxiliary gripper(mm)
- 2000
- Gripper Reach(mm)
- 0–200
- Robot Arm Weight (kg)
- 15
Communication and imaging
- Communication
- Wireless communication: Up to 1,000 m communication: Cable ≥ 100 m, fibre optic ≥ 300 m
- Number of cameras
- 7
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
