Integrated steering and traction
One module combines travel drive and steering functions for compact chassis layouts.
Steering-Drive Modules / SFSD10B-P

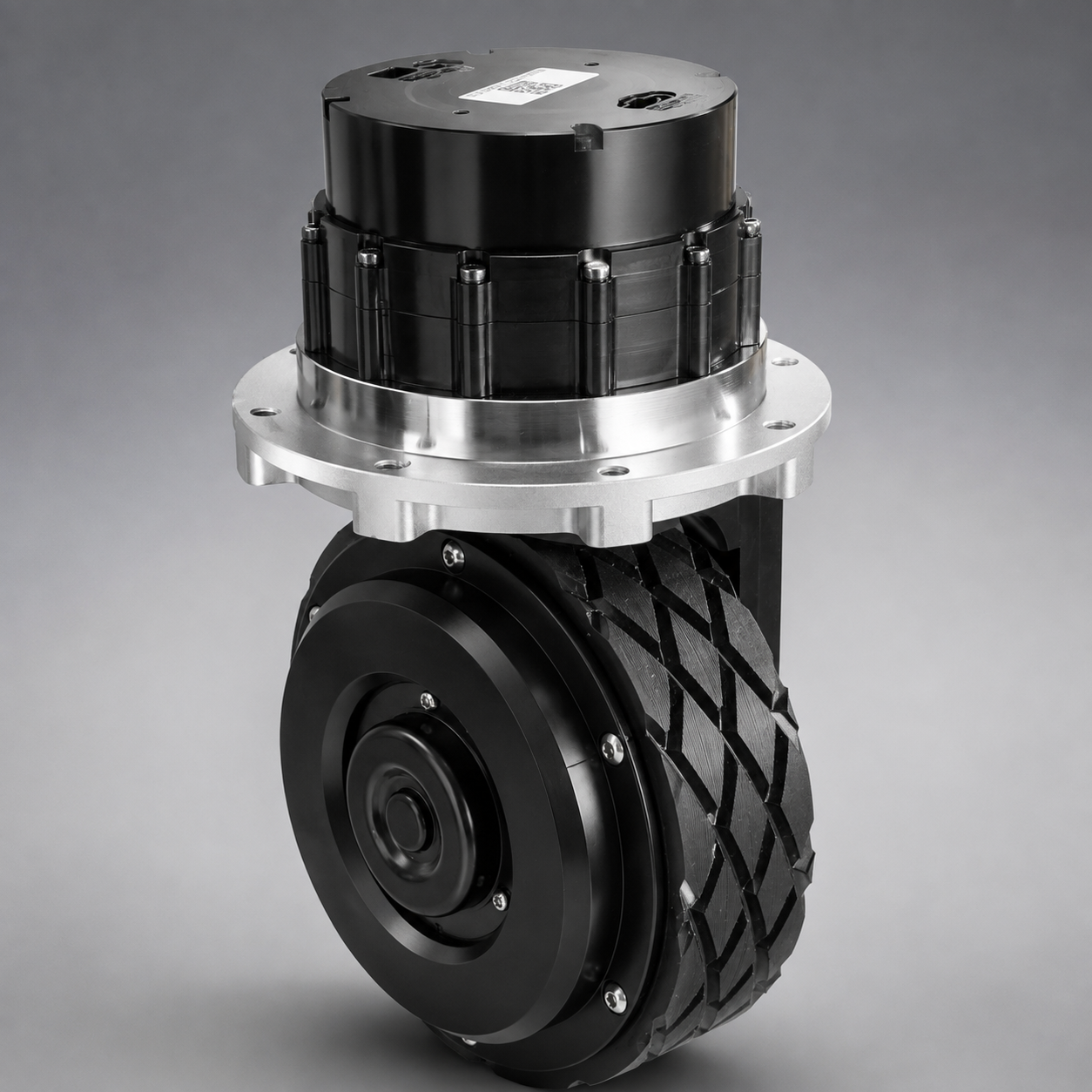

SFSD10B-P 140 mm Steering-Drive Module
A compact 140 mm steering-drive module combining traction, steering reduction, CAN communication, and polyurethane wheel hardware.
- Operating voltage
- 24-48 V configuration
- Drive rated torque
- 7 N·m
- Drive peak torque
- 20 N·m
- Travel speed
- 2.2 m/s
Product overview
Designed around verified requirements.
The SFSD10B-P packages the drive motor, steering motor, steering reduction, feedback, and wheel into a single mobility module for AGV and AMR chassis development. The supplied configuration lists 24-48 V operation, CAN communication, and a 70 kg per-wheel load reference. Final mounting, cabling, duty cycle, and load distribution require engineering confirmation.
CAN integration
The supplied interface definition includes CAN communication for motion-control integration.
Defined wheel configuration
140 mm A75 polyurethane tread with a published 70 kg per-wheel load reference.

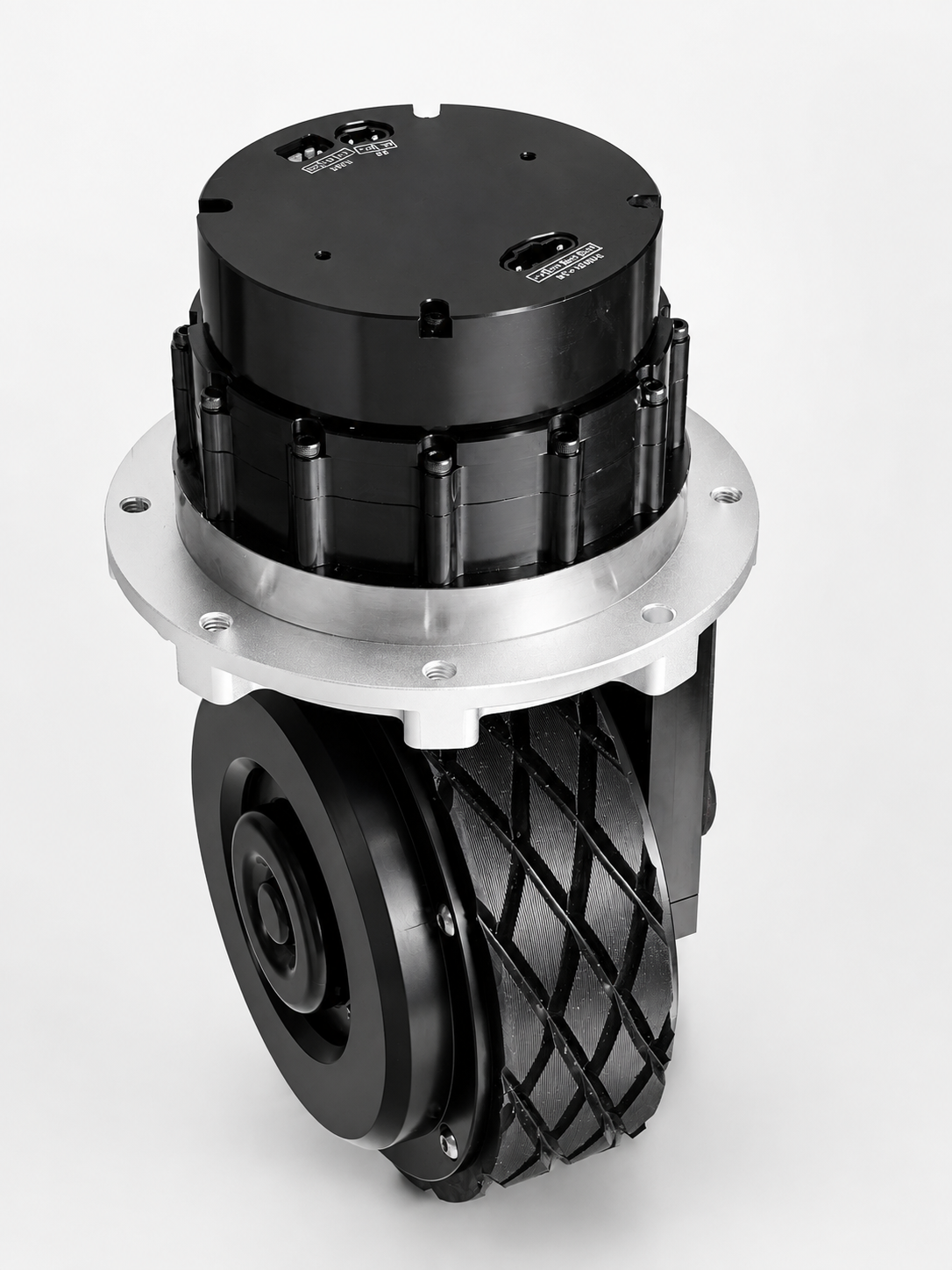

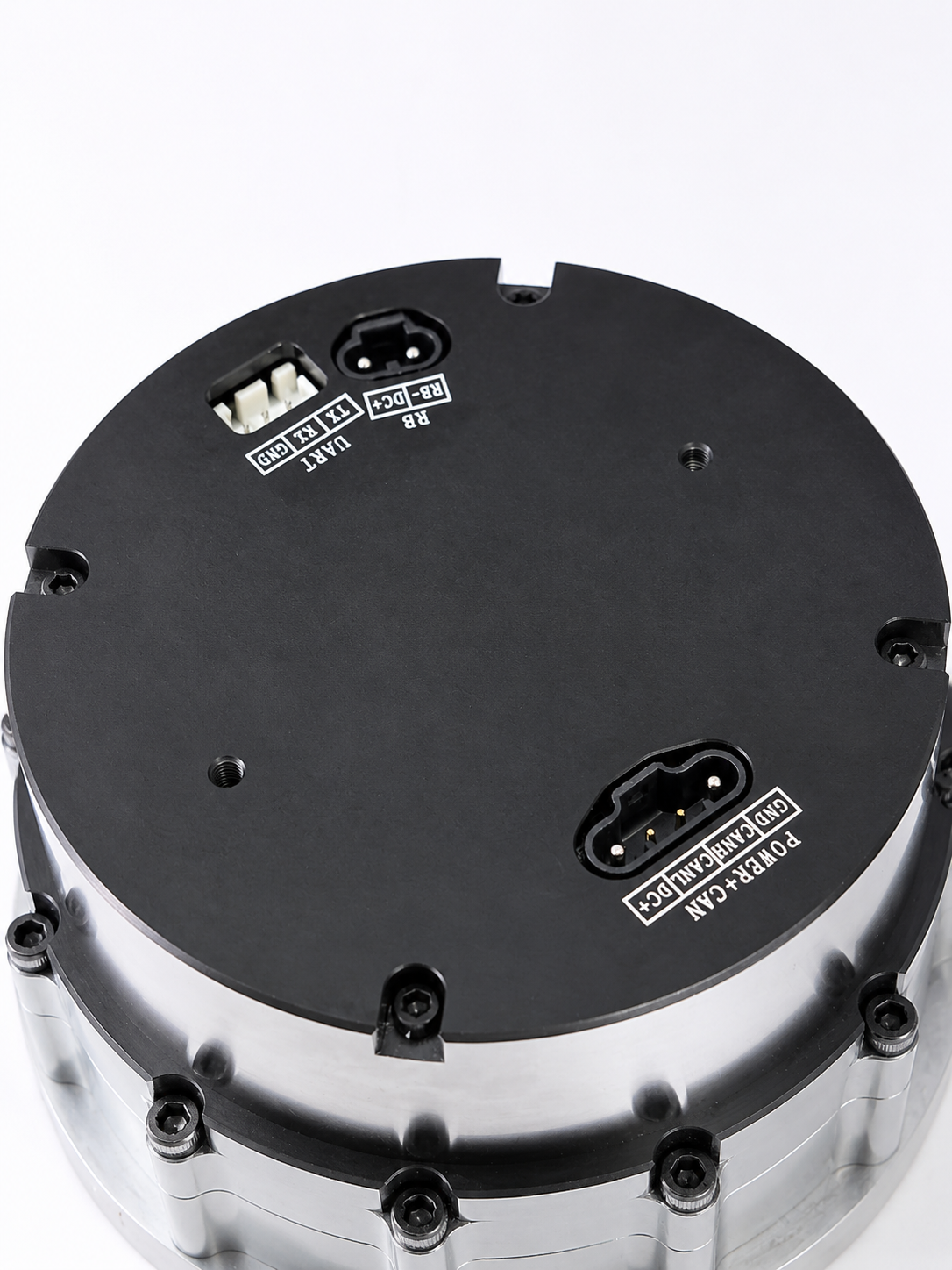

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Drive and steering
- Operating voltage
- 24-48 V configuration
- Drive rated torque
- 7 N·m
- Drive peak torque
- 20 N·m
- Travel speed
- 2.2 m/s
- Steering rated torque
- 1.8 N·m
- Steering peak torque
- 4 N·m
- Steering motor speed
- 2,500 rpm
Mechanical and integration
- Communication
- CAN bus
- Wheel diameter
- 140 mm
- Wheel material
- A75 polyurethane tread
- Product weight
- 5 kg
- Published maximum load
- 70 kg per wheel
- Protection rating
- IP65
- Operating temperature
- 0°C to 40°C
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
Request Technical FilesStart a project conversation
Discuss SFSD10B-P 140 mm Steering-Drive Module with our team.
Share the payload, terrain, dimensions, quantity, and control requirements of your project.
