Multi-sensor localization
Laser SLAM, optional RTK, IMU, and 3D camera integration support positioning and environmental awareness.
Inspection & Special Robots / SFSR500

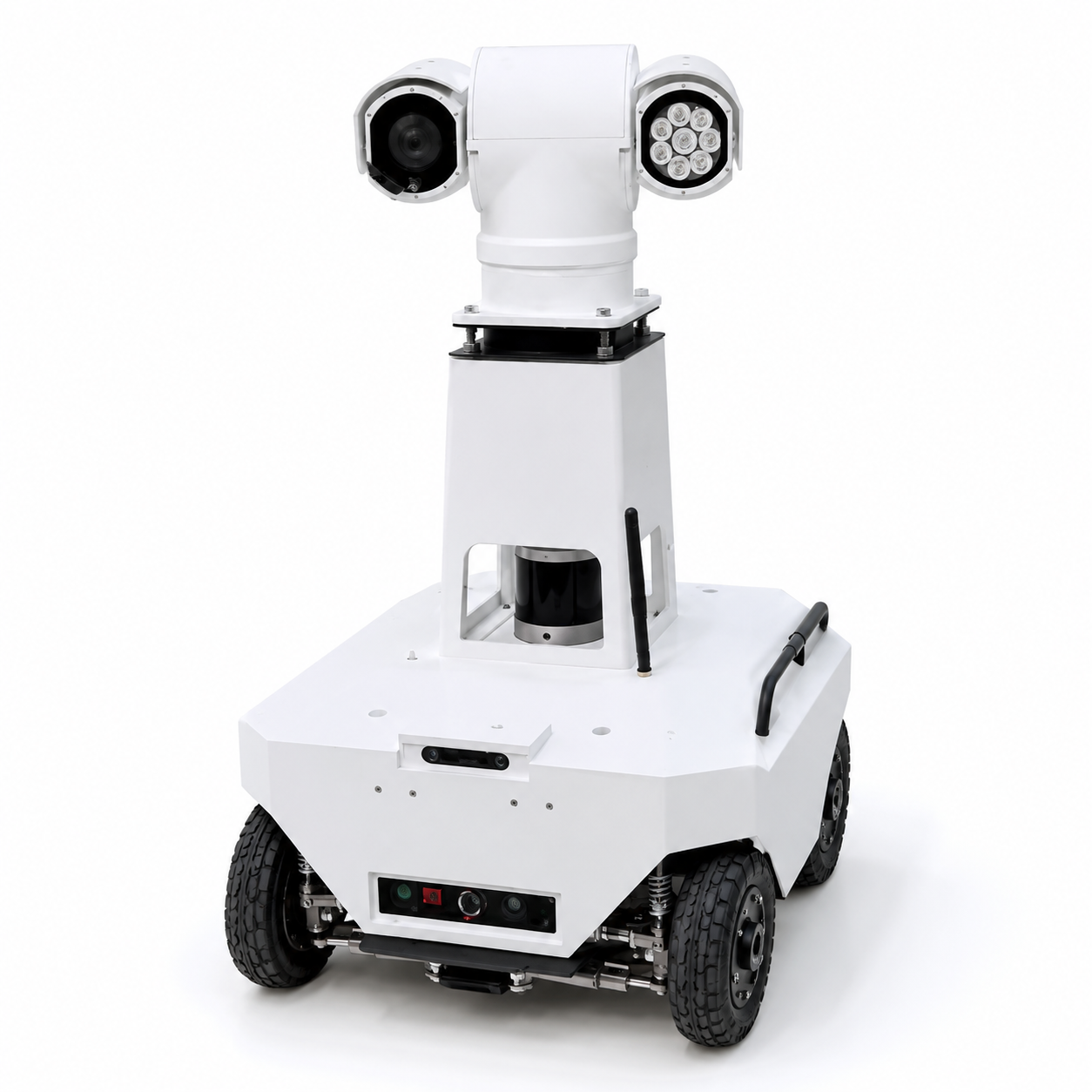

SFSR500 Autonomous Inspection Robot
An autonomous outdoor inspection robot with laser SLAM, 3D camera integration, IP65 protection, and an 80 kg payload configuration.
- Maximum speed
- 2 m/s (remote control)
- Cruising speed
- Up to 1.2 m/s
- Maximum obstacle height
- 50 mm
- Wading depth
- 100 mm
Product overview
Designed around verified requirements.
The SFSR500 is designed for routine inspection in industrial parks, municipal sites, reservoirs, ports, substations, and similar facilities. The supplied configuration combines four-wheel independent drive and suspension with environmental sensing, remote monitoring, optional RTK, and secondary-development support. Application-specific cameras, thermal sensing, alarms, and communications should be confirmed for each project.
Outdoor-ready configuration
The supplied configuration lists IP65 protection, 100 mm wading depth, and -20°C to 50°C operation.
Remote inspection workflows
Supports real-time monitoring, obstacle avoidance, voice alarms, and configurable inspection payloads.

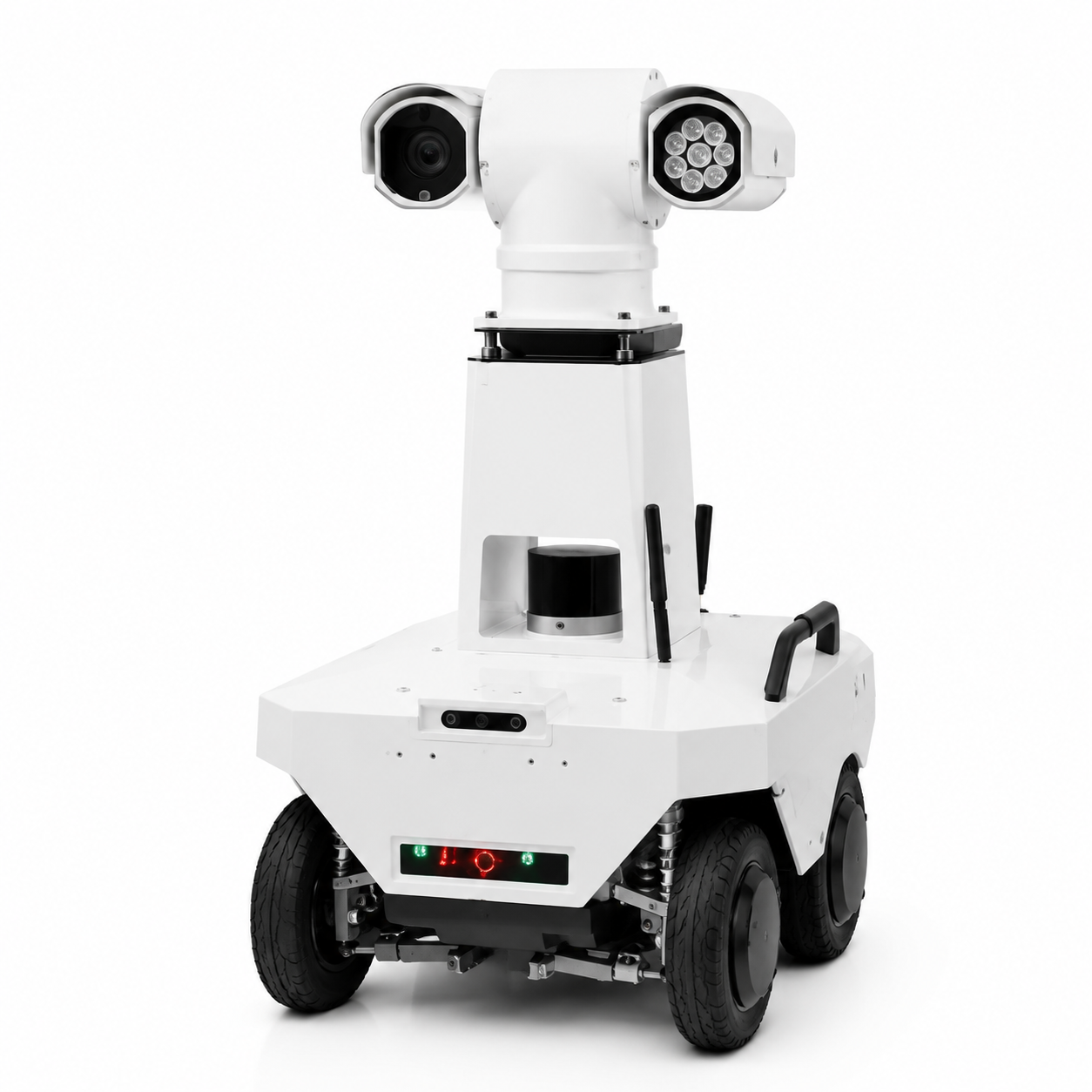

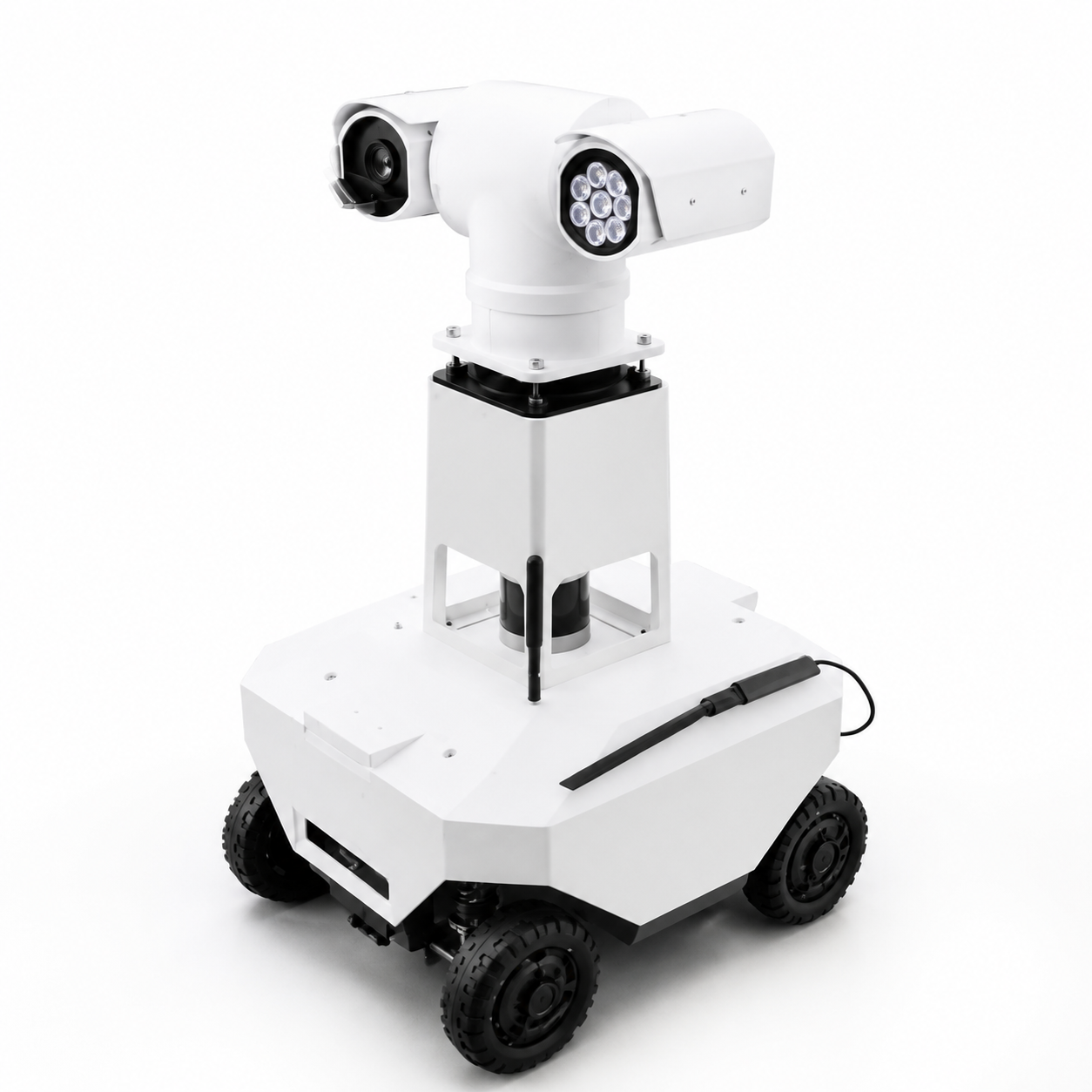

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Mobility and protection
- Maximum speed
- 2 m/s (remote control)
- Cruising speed
- Up to 1.2 m/s
- Maximum obstacle height
- 50 mm
- Wading depth
- 100 mm
- Protection rating
- IP65
- Published maximum load
- 80 kg
- Chassis weight
- Approx. 75 kg
Power and autonomy
- Battery
- 48 V / 36 Ah LiFePO4, customizable
- Charging
- Manual or optional automatic charging
- Charging time
- Up to 2.5 hours
- Endurance
- 8 hours
- Navigation
- Laser SLAM, optional RTK, and 3D camera
- Real-time obstacle avoidance
- Supported
- Operating temperature
- -20°C to 50°C
- Secondary development
- Supported
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
