Laser SLAM navigation
Published navigation accuracy: ±10 mm, ±1°.
AMR & Delivery Robots / SFDR100

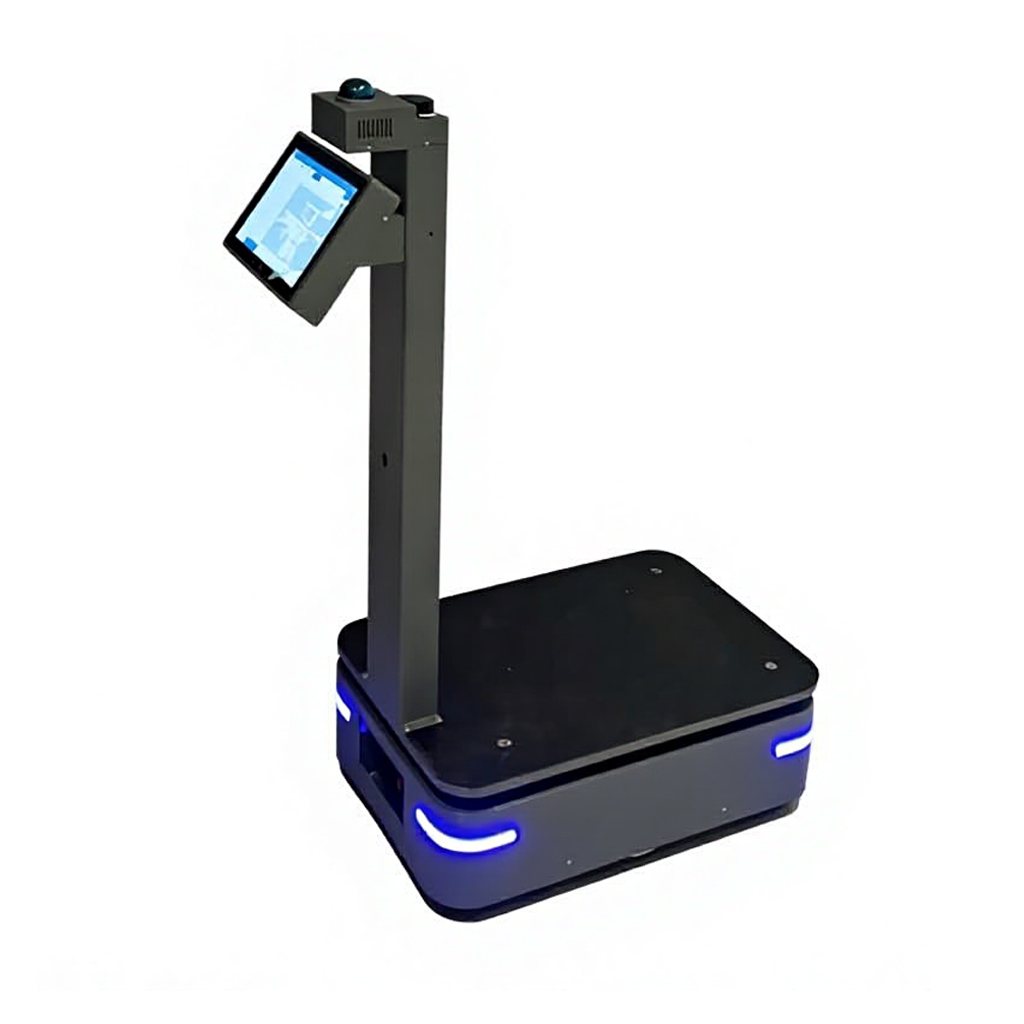

SFDR100 Autonomous Delivery Robot
An autonomous delivery robot with laser SLAM navigation, automatic charging support, and a published 100 kg payload configuration.
- Vehicle Dimension
- L650×W450×H1098 mm
- Chassis Type
- 2-wheel Differential Drive
- Max. Travel Speed
- 1.2m/s
- Driving Functions
- Forward / Backward / In-place Rotation
Product overview
Designed around verified requirements.
The SFDR100 combines a differential-drive mobile base, laser-based positioning, safety sensing, and a configurable delivery body. It is intended for indoor logistics and service-delivery projects that need autonomous navigation, accurate docking, and manual or automatic charging. Confirm the final sensor package, battery, wireless connection, and payload interface for the selected deployment.
100 kg payload configuration
The supplied product sheet lists a maximum load of 100 kg.
Long-duty operation
Published overall endurance: 10h with manual or automatic charging support.

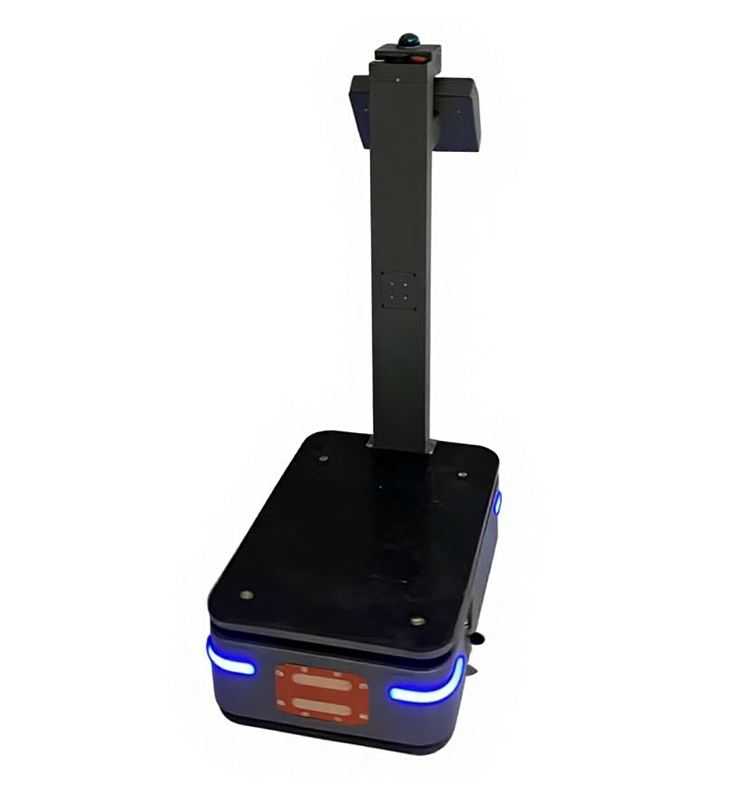

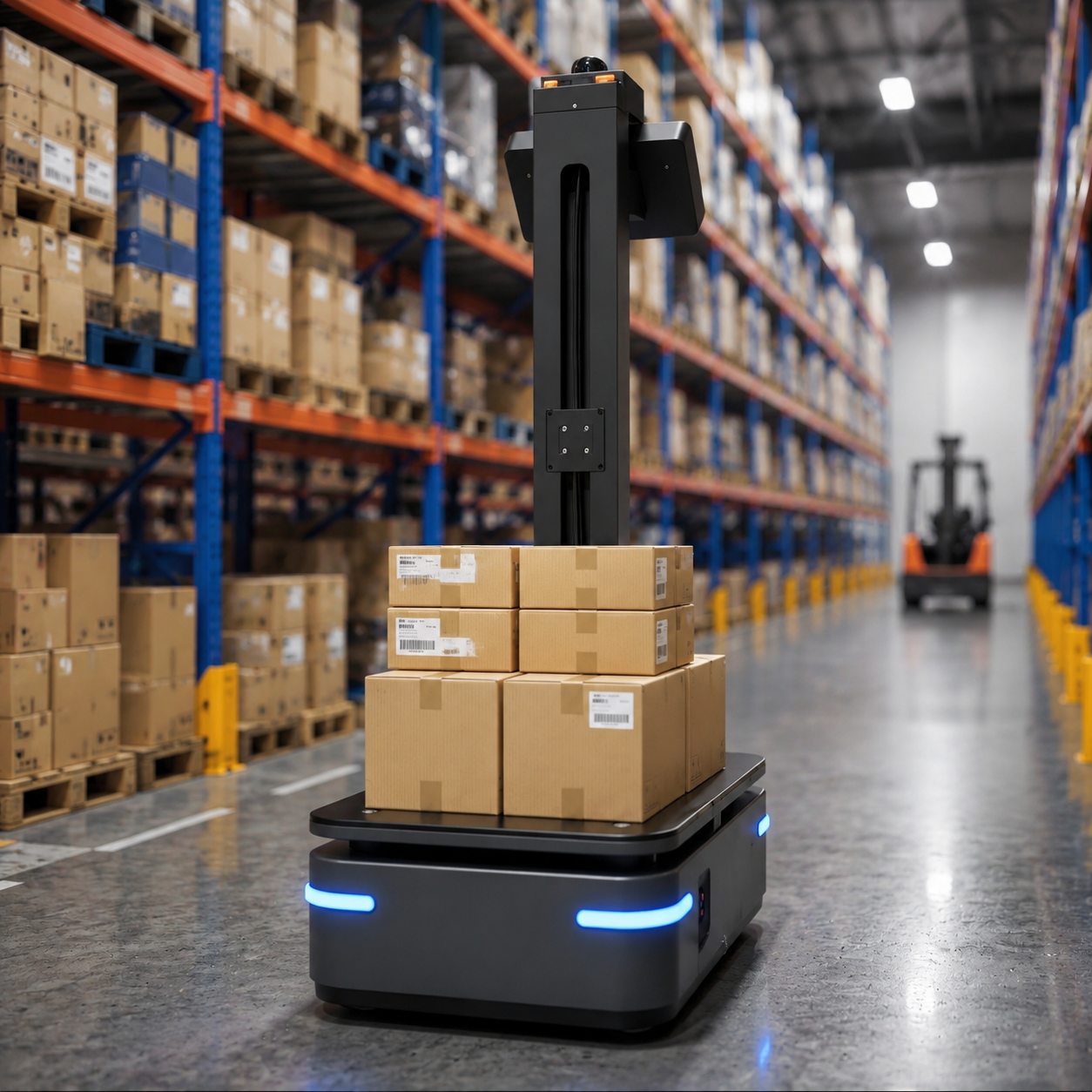

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Platform and performance
- Vehicle Dimension
- L650×W450×H1098 mm
- Chassis Type
- 2-wheel Differential Drive
- Max. Travel Speed
- 1.2m/s
- Driving Functions
- Forward / Backward / In-place Rotation
- Trafficability (Slope/Step/Gap)
- ≤5% / 15 mm / 30 mm
- Product weight
- 70KG
- Max. Load Capacity
- 100 kg
Navigation and sensing
- Navigation Method
- Laser SLAM
- Communication Mode
- WLAN / 5G Supported
- Sensor Configuration
- Multi-line laser*1 (3D laser SLAM) Single-line lidar*1
- Navigation Accuracy
- ±10 mm, ±1°
- Docking Accuracy
- ±2~5 mm, ±0.5°
Power and operation
- Battery Spec
- 24 V/20 Ah Lithium Iron Phosphate (Customizable)
- Charging Mode
- Manual / Automatic Recharging
- Charging Time
- ≤2h
- Overall Endurance
- 10h
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
Request Technical FilesStart a project conversation
Discuss SFDR100 Autonomous Delivery Robot with our team.
Share the payload, terrain, dimensions, quantity, and control requirements of your project.
