Omnidirectional mobility
Independent wheel modules support multi-directional motion and in-place turning.
Wheeled Robot Chassis / SFOW500

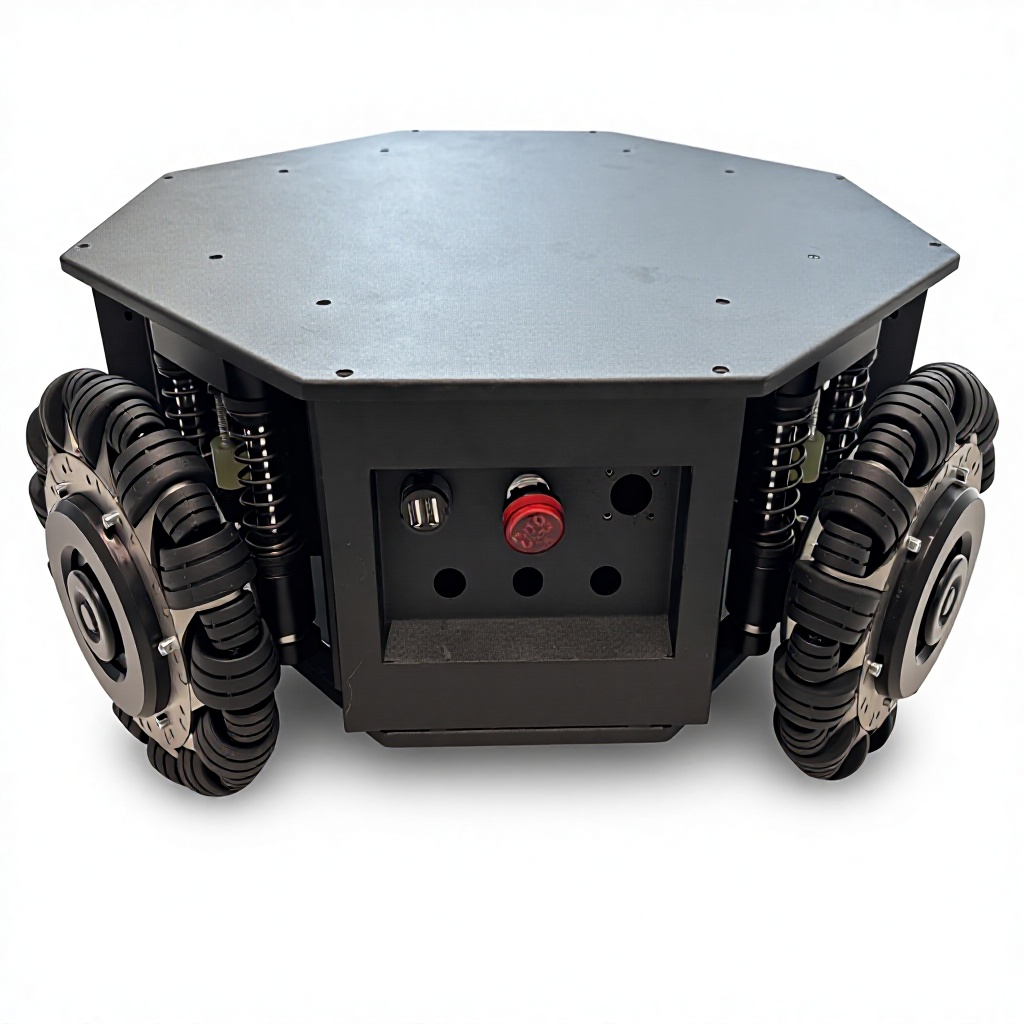

SFOW500 100 kg Omnidirectional Robot Chassis
A compact omnidirectional robot chassis with four independent drive modules and a published 100 kg payload configuration.
- Length (mm)
- 508
- Width (mm)
- 508
- Height (mm)
- 214
- Wheel Diameter (mm)
- 214
Product overview
Designed around verified requirements.
The SFOW500 provides multi-directional motion for service robots, AMRs, inspection platforms, and research systems operating in constrained spaces. Its square integration deck, encoder-equipped drive system, and 48 V battery configuration provide a practical foundation for payload, sensor, compute, and autonomy integration.
100 kg payload configuration
Published maximum payload: 100 kg.
Integration-ready power
Supplied battery configuration: 48 V / 45 Ah.

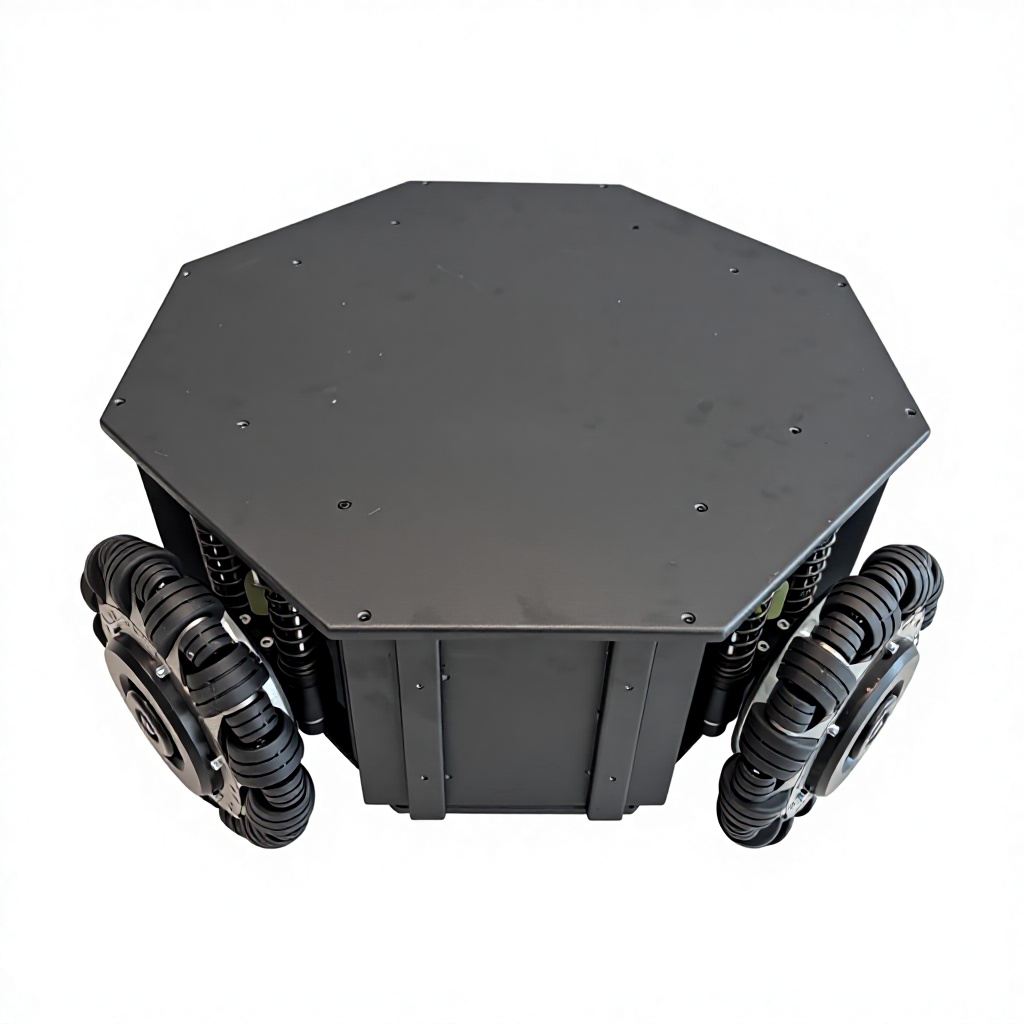

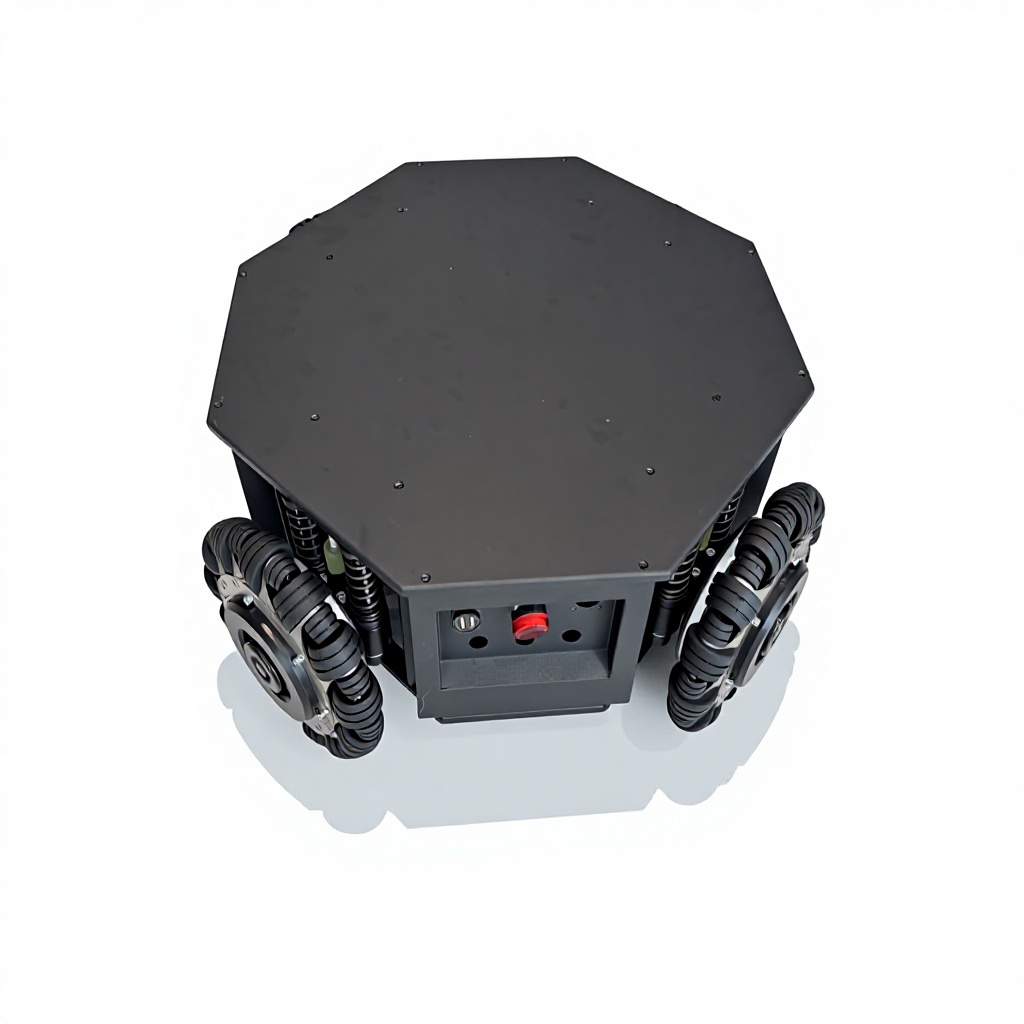

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Dimensions and mobility
- Length (mm)
- 508
- Width (mm)
- 508
- Height (mm)
- 214
- Wheel Diameter (mm)
- 214
- Min. Ground Clearance (mm)
- 30
- Track Width (mm)
- 582
- Turning Radius (mm)
- 0
- Max. Climbing Gradient (°)
- 5
- Max. Speed (m/s)
- 2
- Max. Obstacle-Crossing Height (mm)
- 20 mm
Power and endurance
- Battery Type
- Lithium iron phosphate
- Battery Capacity
- 48 V / 45 Ah
- Working Time (h)
- 8
- Charging Time (h)
- 4
- Drive Motor Power (W)
- 200 W × 4
- Mileage Sensor
- Magnetic Encoder Sensor
- Battery Protection
- Over-current, over-discharge, and short-circuit protection
Mass and capacity
- Net Weight (kg)
- 54 kg
- Max. Payload (kg)
- 100 kg
