Integrated wheel drive
Published wheel diameter: 110 mm.
Hub Servo Motors / SFWH45ASMB50B

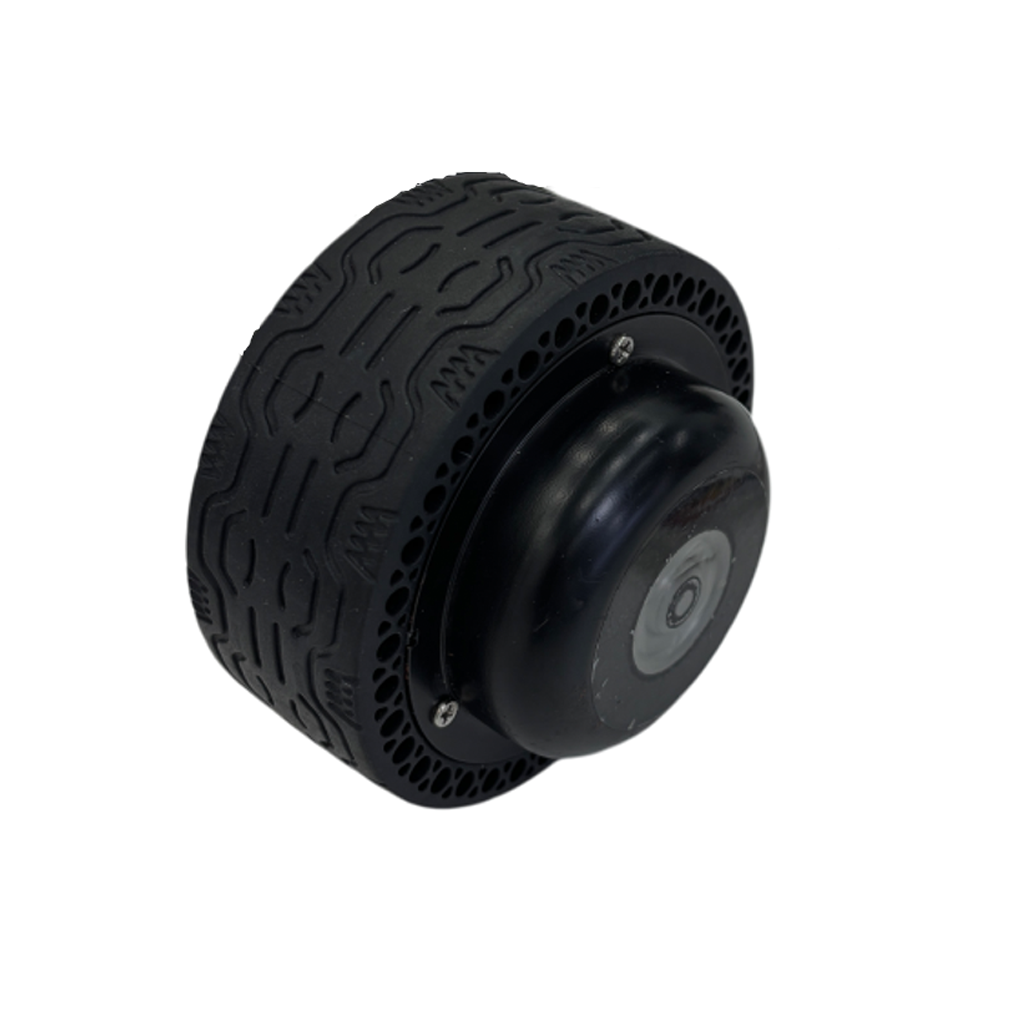

SFWH45ASMB50B 110 mm 50 W Hub Servo Motor
SFWH45ASMB50B is an integrated hub servo motor with 50 W rated power, encoder feedback, and a wheel format for mobile robot integration.
- Rated Voltage
- 24VDC
- Rated Current
- 2.2A
- Rated Torque
- 1.1N·m
- Peak Torque
- 3N·m
Product overview
Designed around verified requirements.
SFWH45ASMB50B combines wheel, brushless drive, and encoder feedback in a compact hub-motor assembly for AGVs, AMRs, service robots, and mobile chassis. The supplied specification lists voltage, current, torque, speed, power, encoder, protection, temperature, weight, and load values where available. Confirm the tire, cable, connector, controller, load conditions, and duty cycle for the selected project.
Servo feedback
Encoder resolution: 4096.
Published output
Rated torque 1.1N·m at 350 rpm rated speed.

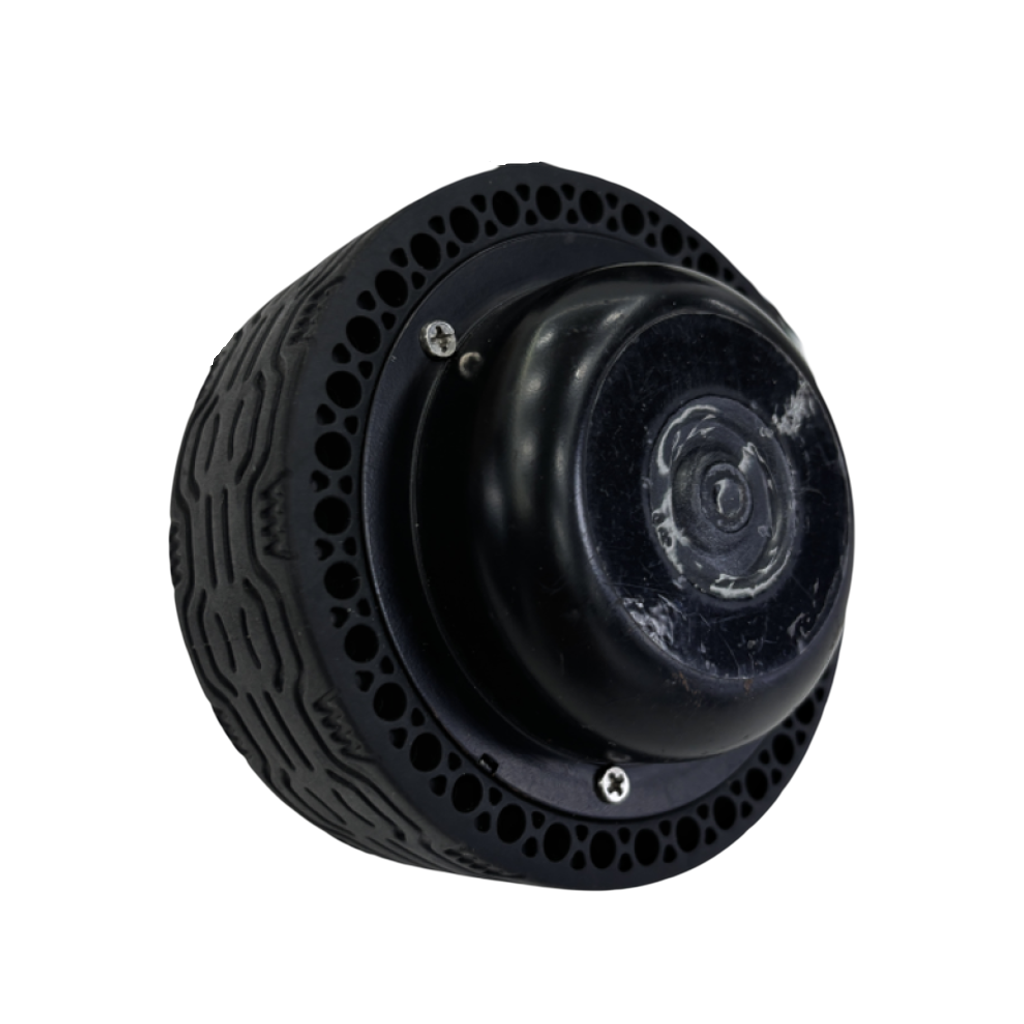

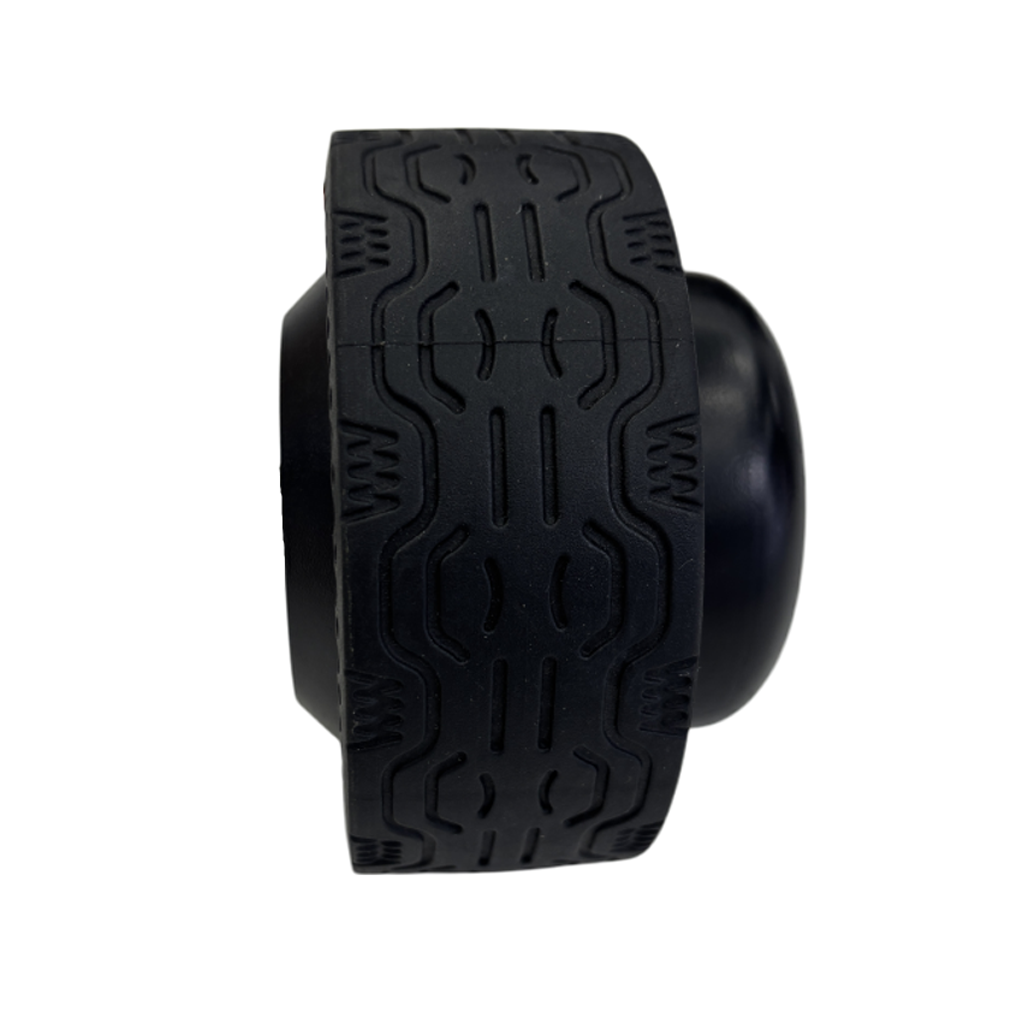

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Electrical and output
- Rated Voltage
- 24VDC
- Rated Current
- 2.2A
- Rated Torque
- 1.1N·m
- Peak Torque
- 3N·m
- Rated Speed
- 350 rpm
- Rated Power
- 50 W
Mechanical and environment
- Wheel Diameter
- 110 mm
- Encoder Resolution
- 4096
- Protection Class
- IP67 for body
- Motor Weight
- 1.3KG
- Maximum load
- 45KG
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
