Defined current capability
Continuous current 15 A RMS; peak current 75 A peak.
Robot Motor Drivers / SFMDSFMD4875D

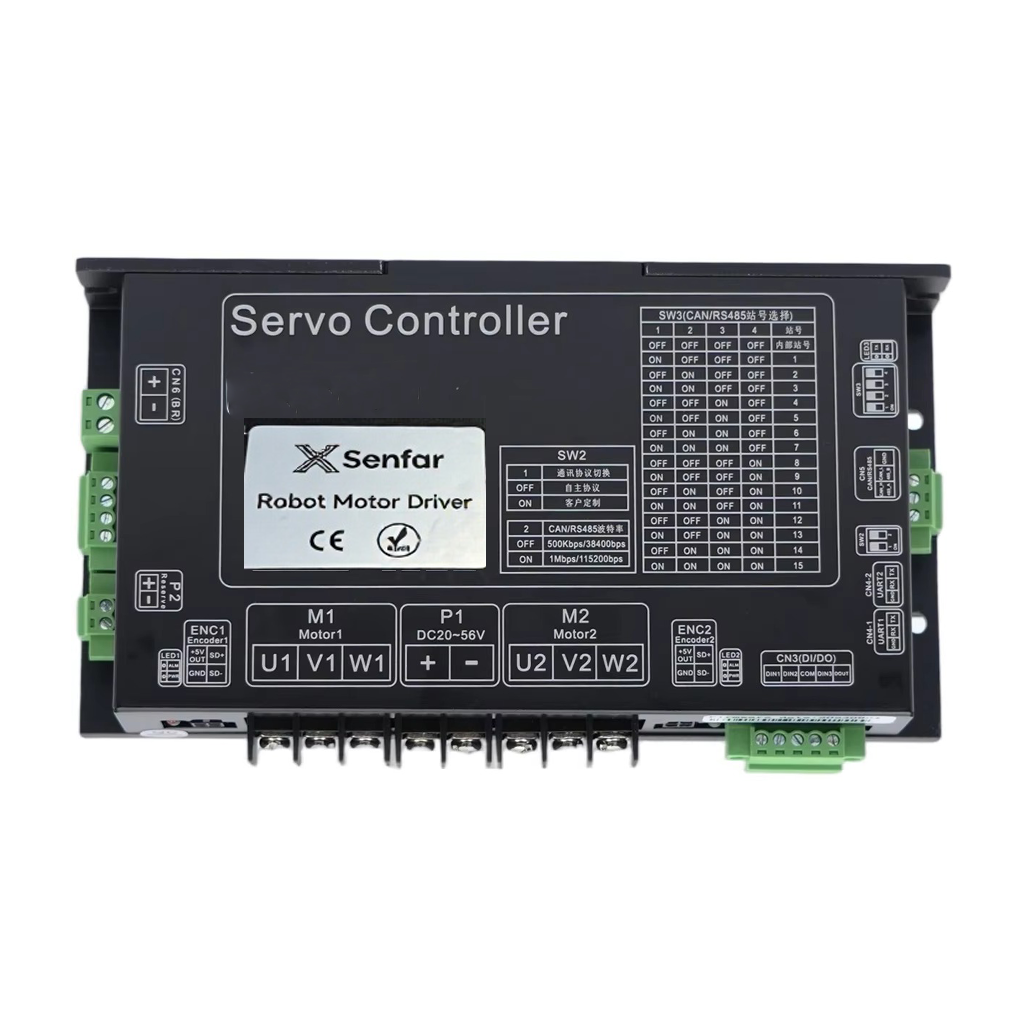

SFMD4875D 75 A Robot Motor Driver
SFMDSFMD4875D is a robot motor driver for servo hub motors with 75 A peak peak current and UART, RS485, or CAN integration options.
- Input Voltage
- 20-56 V
- Peak Current
- 75 A peak
- Continuous Current
- 15 A RMS
- Supported Motor Types
- Servo Hub Motor
Product overview
Designed around verified requirements.
SFMDSFMD4875D is designed to drive compatible robot servo hub motors in AGV, AMR, service-robot, and mobile-platform applications. The supplied specification lists input voltage, continuous and peak current, communication, encoder, temperature, and mass. Confirm the selected firmware, bus protocol, motor matching, connectors, and protection strategy with engineering.
Flexible communication
Published communication: UART+RS485 or UART+CAN.
Encoder compatibility
Designed for Magnetic Encoders in compatible servo hub-motor systems.

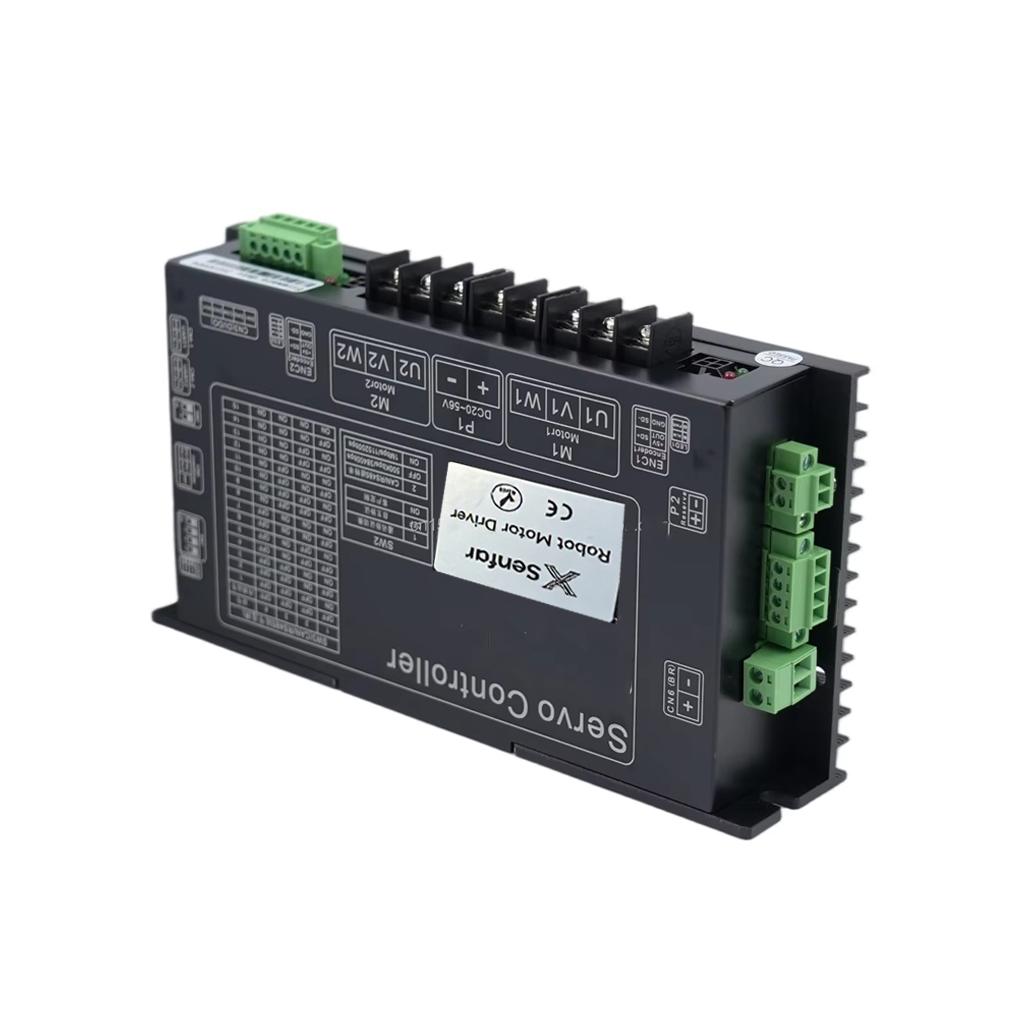

Product media
See the product in detail.
Technical specification
A clear, grouped product definition.
Electrical and current
- Input Voltage
- 20-56 V
- Peak Current
- 75 A peak
- Continuous Current
- 15 A RMS
Integration and environment
- Supported Motor Types
- Servo Hub Motor
- Communication Type
- UART+RS485 or UART+CAN
- Operating Temperature
- -10°C~40°C
- Compatible Encoder
- Magnetic Encoders
- Weight
- 0.5 kg
Public files
Documents cleared for public release.
No public files are available yet.
Request approved technical information from the Aimrob team.
Engineering support
Discuss your integration requirements.
Request protocols, drawings, SDK information, or configuration guidance through the engineering team.
Request Technical FilesStart a project conversation
Discuss SFMD4875D 75 A Robot Motor Driver with our team.
Share the payload, terrain, dimensions, quantity, and control requirements of your project.
